Diagrams For Operating Instruction
• Open the lid of battery box on the shaft to ensure 2 batteries of size AAA
available. Replace batteries about every 3months.

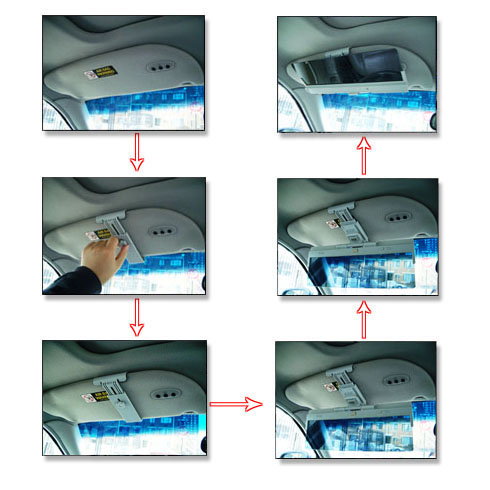

• Installation:
1.
Place the AGS under sun visor before driver, move it left and right to
aproper place. Adjust draw gear and fix it to the sun visor.
2. Check to ensure each part is tightly fastened before use.
• Use
Turn color-changing board over by hand, and adjust the angle and height
of
board according to practical .Press power supply button and the green
indicator will be on. Set option Day/Night.
• WARNING: When driving at night and no external light on the road,
please restore the board to the normal position.
• Switch off power when board is not in use. The green indicator will be
off and restore the board to the normal position.
• Key Functions
• The board color will adjust automatically with external light intensity,
which
can keep driver's vision unchanged and prevent against dazzling.
• Options of I/II (Day/Night) are available Set option according to practical
situation.
• Safety design is done in accordance with national industrial standards.
Anti- collision is available.
• Main technical data
1.power supply:2 batteries, 1.5v, size:AAA
2. Power:1.3mw
3. Time of color-changing:0.15 seconds
4.Ambient temperature: -22F-140F
5.Relative humidity: 85%
|
|
|
|
|
|
